c.1961 Schneider BIP

Vert/horiz. shirt pocket radio, thermoplastic cabinet
6 x 3 x 1 1/8 inches / 154 x 76 x 29 mm
2-band MW/LW, six transistors (Thomson, 2x 2N321, 2N508; OC44, 2x OC45), superheterodyne circuit
One 9-volt battery
Manufactured by Schneider; Paris

A tall and thin (29 mm / 1 1/8 inches) pocket radio, one of the more stylish pocket radios to have been produced in France. Several of the photos below show how this radio's easel stand is positioned to have this set rest horizontally on a surface, rather than vertically — the tuning dial reads either way. When held vertically, the MW/LW band switch is on the top of the cabinet and the on/off-volume control is on the bottom!

Like many European MW/LW radios, this set's MW band is calibrated in kHz and the LW band displays a handful of LW broadcasters by name. Radios made in France designated their bands as "PO" (Petites ondes) and "GO" (Grandes ondes), "PO" being MW, and "GO" LW.

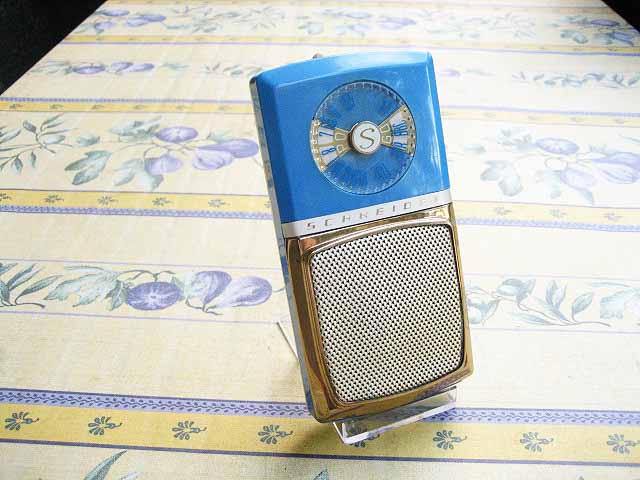

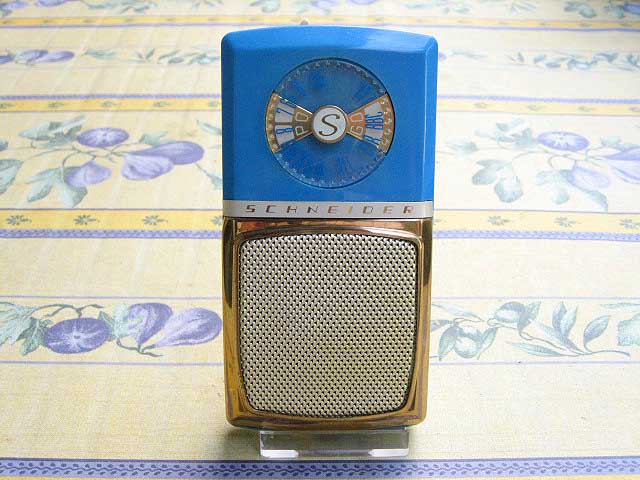

Schneider BIP

Schneider BIP


Schneider BIP

Schneider BIP


Schneider BIP

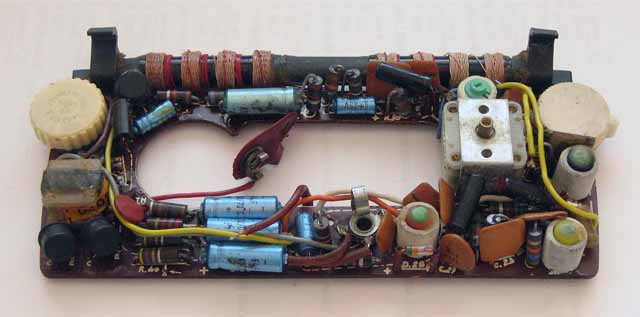

chassis — click on the photo for a larger image


Schneider BIP

circuit board (shown upside-down)


Schneider BIP

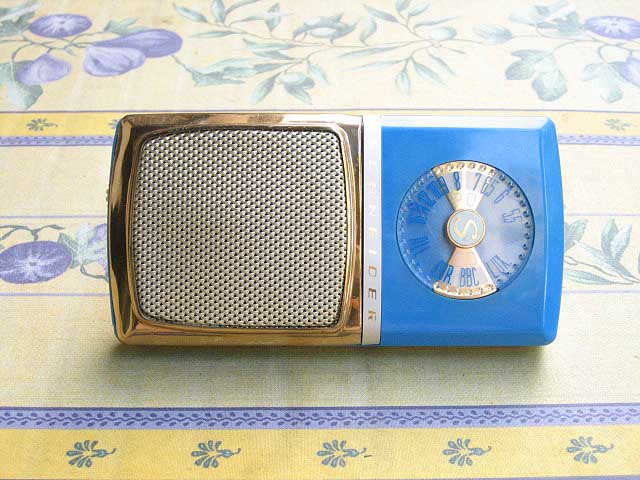

shown here in its intended horizontal tabletop position


Schneider BIP

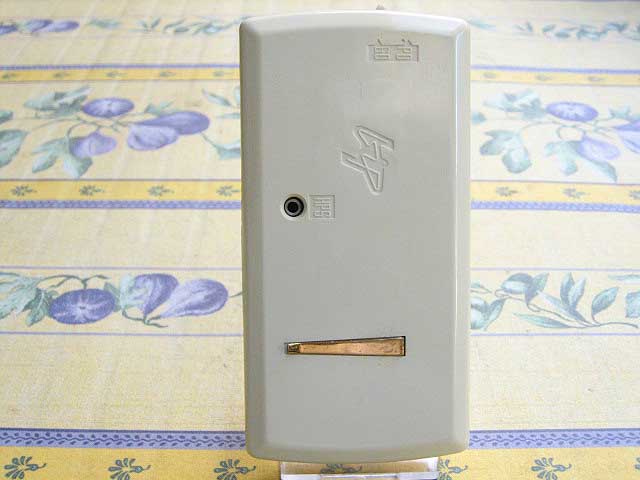

back face of cabinet
