1958/59 Toshiba TR-193

Shirt pocket radio, thermoplastic cabinet
4 1/8 x 2 5/8 x 1 5/8 inches / 105 x 67 x 41 mm
Four transistors (Toshiba, 2S52, 2x 2S53, 2S54, + 1N60 diode), superheterodyne reflex circuit
One standard 9-volt battery
Manufactured by Tokyo Shibaura Electric Co. Ltd. (Toshiba), Kawasaki, Japan

The first version of the famous Toshiba "lace" pocket radio — I'm dating this as having an initial late-1958 production date, but production on this version obviously went well into 1959 (the serial number on the unit shown here indicates it was produced in September 1959). A second version, the 5TP-193, adding a fifth transistor to remove the need for a reflex circuit, came out sometime later in 1959 or 1960.

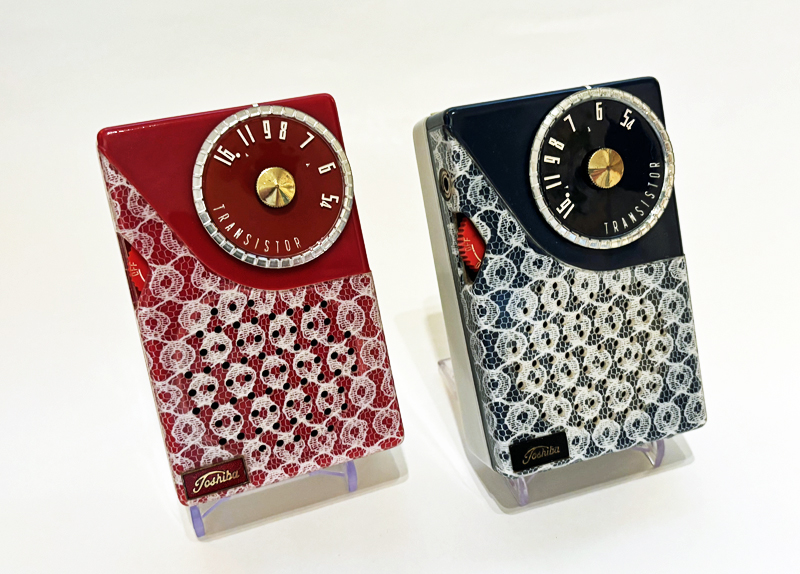

Toshiba TR-193

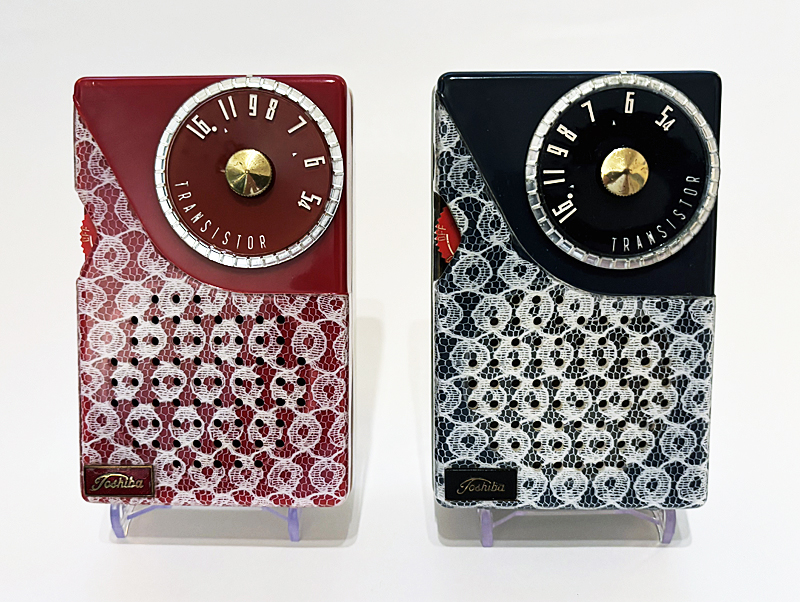

Toshiba TR-193


detail of back cover


inside back cover

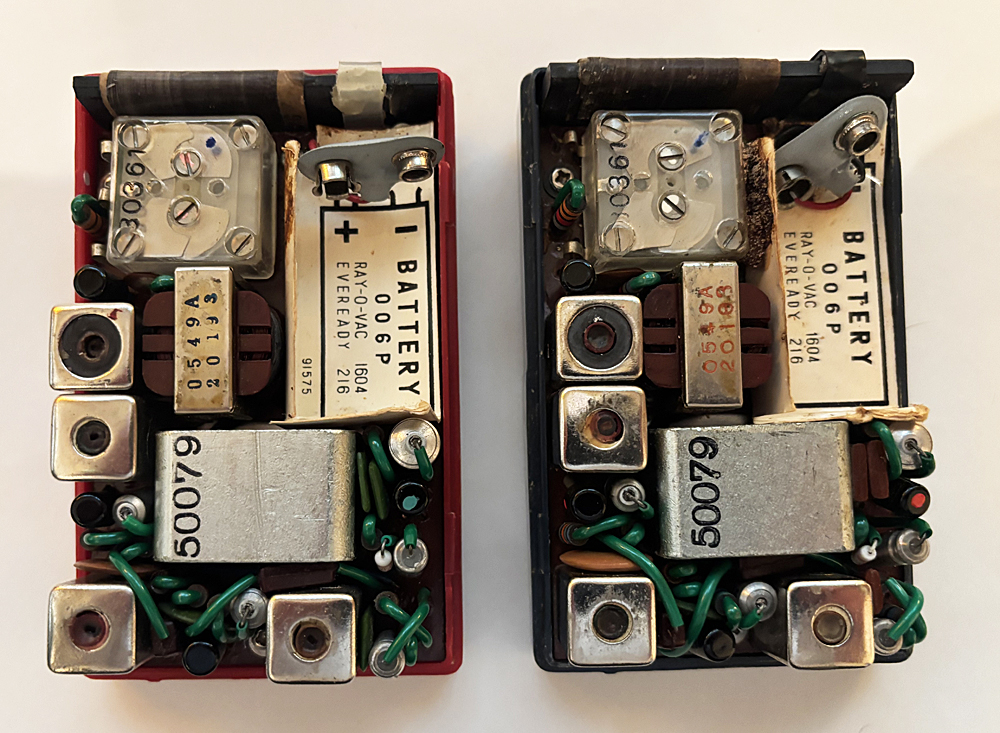

chassis — click on photo for a larger image


page 2 of an undated four-page Toshiba brochure
